go并发
进程
每一个进程都有一个非负整数表示的唯一进程ID，一个现有的进程可以调用fork函数创建一个新的进程（子进程）。
父进程和子进程有些区域只读共享，当需要修改时，采取写时复制技术。
fork 的一个特性是父进程的所有打开文件描述符都被复制到子进程，所以fork之后操作文件描述符有两种情况
- 父进程等待子进程
- 父进程和子进程各自执行不同的程序段
wait 和 waitpid ，父进程用来等待子进程的函数。当一个进程正常或异常终止时，内核向其父进程发送 SIGCHLD 信号。
fork 函数创建了新的子进程后，子进程往往要调用一种exec函数以执行另一个程序。
线程
典型的 unix进程可以看成只有一个控制线程： 一个进程在某个时刻只能做一件事情，有了多个控制线程以后，在程序设计时就可以把进程设计成在某一个时刻能够做不止一件事，每个线程处理各自独立的任务。
当多个控制线程共享相同的内存时，需要确保每个线程看到一致的数据视图。当一个线程可以修改的变量，其他线程也可以读取或者修改的时候，我们就需要对这些线程进行同步，确保他们在访问变量的存储内容时不会访问到无效的值。
为了解决这个问题，线程不得不使用锁，同一时间只允许一个线程访问该变量。互斥量，读写锁，自旋锁
进程间通信
- 管道 （半双工，只能在公共祖先的两个进程间使用）
- FIFO （没有第二种局限）
- UNIX 嵌套字 （没有这两种局限）
- 信号量
golang 并发编程理论基础
不要通过共享内存进行通信;相反，通过通信来共享内存。这句话是一条并发编程指导建议，和golang本身关系不大，golang中通过channel来践行这一理论。channel 是一等公民。
golang 并发编程GMP调度模型
面试官： “GMP 模型，为什么要有 P？”
在 Go1.1 之前 Go 的调度模型其实就是 GM 模型，也就是没有 P。今天带大家一起回顾过去的设计。
Go1.0.1 的调度器GM源码的核心关键步骤：
调用 schedlock 方法来获取全局锁。
获取全局锁成功后，将当前 Goroutine 状态从 Running（正在被调度） 状态修改为 Runnable（可以被调度）状态。
调用 gput 方法来保存当前 Goroutine 的运行状态等信息，以便于后续的使用。
调用 nextgandunlock 方法来寻找下一个可运行 Goroutine，并且释放全局锁给其他调度使用。
获取到下一个待运行的 Goroutine 后，将其运行状态修改为 Running。
调用 runtime·gogo 方法，将刚刚所获取到的下一个待执行的 Goroutine 运行起来，进入下一轮调度。
他会不断地运行调度流程，GoroutineA 完成了，就开始寻找 GoroutineB，寻找到 B 了，就把已经完成的 A 的调度权交给 B，让 GoroutineB 开始被调度，也就是运行。
当然了，也有被正在阻塞（Blocked）的 G。假设 G 正在做一些系统、网络调用，那么就会导致 G 停滞。这时候 M（系统线程）就会被会重新放内核队列中，等待新的一轮唤醒
GM 缺陷
这么表面的看起来，GM 模型似乎牢不可破，毫无缺陷。但为什么要改呢？
在 2012 年时 Dmitry Vyukov 发表了文章《Scalable Go Scheduler Design Doc》
- Single global mutex (Sched.Lock) and centralized state. The mutex protects all goroutine-related operations (creation, completion, rescheduling, etc).
- Goroutine (G) hand-off (G.nextg). Worker threads (M's) frequently hand-off runnable goroutines between each other, this may lead to increased latencies and additional overheads. Every M must be able to execute any runnable G, in particular the M that just created the G.
- Per-M memory cache (M.mcache). Memory cache and other caches (stack alloc) are associated with all M's, while they need to be associated only with M's running Go code (an M blocked inside of syscall does not need mcache). A ratio between M's running Go code and all M's can be as high as 1:100. This leads to excessive resource consumption (each MCache can suck up up to 2M) and poor data locality.
- Aggressive thread blocking/unblocking. In presence of syscalls worker threads are frequently blocked and unblocked. This adds a lot of overhead.
GM -> GMP
Processors The general idea is to introduce a notion of P (Processors) into runtime and implement work-stealing scheduler on top of Processors. M represents OS thread (as it is now). P represents a resource that is required to execute Go code. When M executes Go code, it has an associated P. When M is idle or in syscall, it does not need P. There is exactly GOMAXPROCS P’s. All P’s are organized into an array, that is a requirement of work-stealing. GOMAXPROCS change involves stop/start the world to resize array of P’s. Some variables from sched are de-centralized and moved to P. Some variables from M are moved to P (the ones that relate to active execution of Go code).
struct P
{
Lock;
G *gfree; // freelist, moved from sched
G *ghead; // runnable, moved from sched
G *gtail;
MCache *mcache; // moved from M
FixAlloc *stackalloc; // moved from M
uint64 ncgocall;
GCStats gcstats;
// etc
...
};
每个 P 有自己的本地队列，大幅度的减轻了对全局队列的直接依赖，所带来的效果就是锁竞争的减少。而 GM 模型的性能开销大头就是锁竞争。
每个 P 相对的平衡上，在 GMP 模型中也实现了 Work Stealing 算法，如果 P 的本地队列为空，则会从全局队列或其他 P 的本地队列中窃取可运行的 G 来运行，减少空转，提高了资源利用率。
GMP
// Goroutine scheduler
// The scheduler's job is to distribute ready-to-run goroutines over worker threads.
//
// The main concepts are:
// G - goroutine.
// M - worker thread, or machine.
// P - processor, a resource that is required to execute Go code.
// M must have an associated P to execute Go code, however it can be
// blocked or in a syscall w/o an associated P.

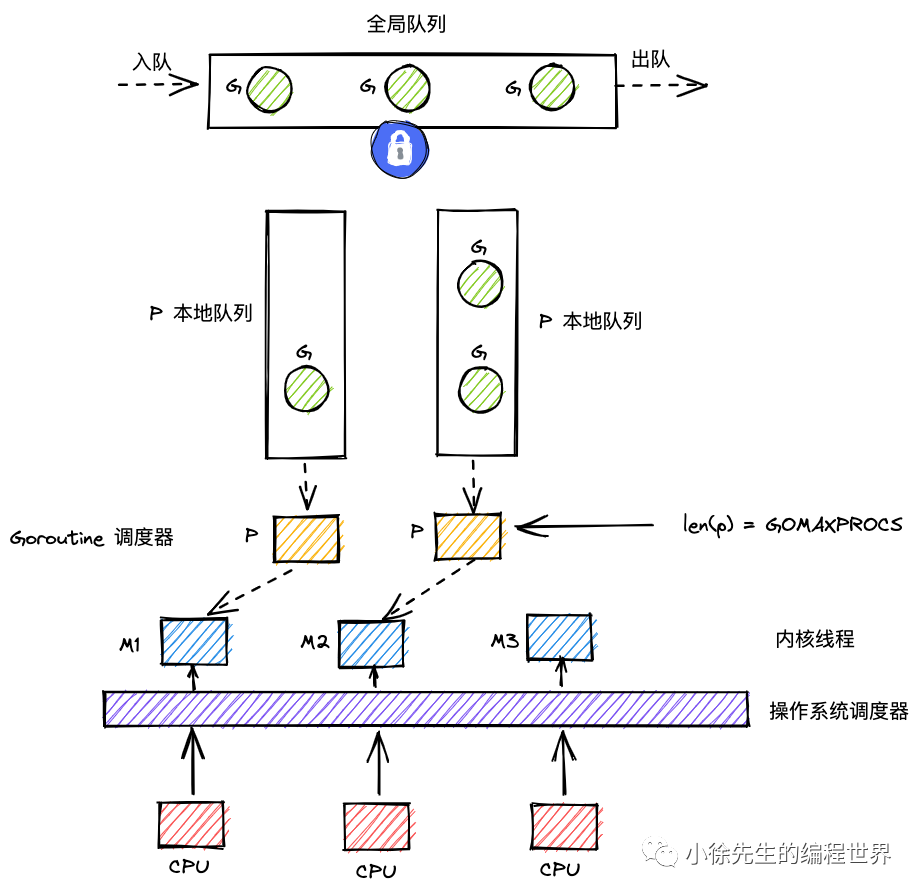

M 是线程的抽象；G 是 goroutine；P 是承上启下的调度器；
M调度G前，需要和P绑定；
全局有多个M和多个P，但同时并行的G的最大数量等于P的数量；
M调度G时，优先取P本地队列，其次取全局队列，最后取wait队列；这样的好处是，取本地队列时，可以接近于无锁化，减少全局锁竞争；
为防止不同P的闲忙差异过大，设立work-stealing机制，本地队列为空的P可以尝试从其他P本地队列偷取一半的G补充到自身队列.
G
type g struct {
// Stack parameters.
// stack describes the actual stack memory: [stack.lo, stack.hi).
// stackguard0 is the stack pointer compared in the Go stack growth prologue.
// It is stack.lo+StackGuard normally, but can be StackPreempt to trigger a preemption.
// stackguard1 is the stack pointer compared in the C stack growth prologue.
// It is stack.lo+StackGuard on g0 and gsignal stacks.
// It is ~0 on other goroutine stacks, to trigger a call to morestackc (and crash).
stack stack // offset known to runtime/cgo
stackguard0 uintptr // offset known to liblink
stackguard1 uintptr // offset known to liblink
_panic *_panic // innermost panic - offset known to liblink
_defer *_defer // innermost defer
m *m // current m; offset known to arm liblink
sched gobuf
syscallsp uintptr // if status==Gsyscall, syscallsp = sched.sp to use during gc
syscallpc uintptr // if status==Gsyscall, syscallpc = sched.pc to use during gc
stktopsp uintptr // expected sp at top of stack, to check in traceback
// param is a generic pointer parameter field used to pass
// values in particular contexts where other storage for the
// parameter would be difficult to find. It is currently used
// in three ways:
// 1. When a channel operation wakes up a blocked goroutine, it sets param to
// point to the sudog of the completed blocking operation.
// 2. By gcAssistAlloc1 to signal back to its caller that the goroutine completed
// the GC cycle. It is unsafe to do so in any other way, because the goroutine's
// stack may have moved in the meantime.
// 3. By debugCallWrap to pass parameters to a new goroutine because allocating a
// closure in the runtime is forbidden.
param unsafe.Pointer
atomicstatus atomic.Uint32
stackLock uint32 // sigprof/scang lock; TODO: fold in to atomicstatus
goid uint64
schedlink guintptr
waitsince int64 // approx time when the g become blocked
waitreason waitReason // if status==Gwaiting
preempt bool // preemption signal, duplicates stackguard0 = stackpreempt
preemptStop bool // transition to _Gpreempted on preemption; otherwise, just deschedule
preemptShrink bool // shrink stack at synchronous safe point
// asyncSafePoint is set if g is stopped at an asynchronous
// safe point. This means there are frames on the stack
// without precise pointer information.
asyncSafePoint bool
paniconfault bool // panic (instead of crash) on unexpected fault address
gcscandone bool // g has scanned stack; protected by _Gscan bit in status
throwsplit bool // must not split stack
// activeStackChans indicates that there are unlocked channels
// pointing into this goroutine's stack. If true, stack
// copying needs to acquire channel locks to protect these
// areas of the stack.
activeStackChans bool
// parkingOnChan indicates that the goroutine is about to
// park on a chansend or chanrecv. Used to signal an unsafe point
// for stack shrinking.
parkingOnChan atomic.Bool
raceignore int8 // ignore race detection events
tracking bool // whether we're tracking this G for sched latency statistics
trackingSeq uint8 // used to decide whether to track this G
trackingStamp int64 // timestamp of when the G last started being tracked
runnableTime int64 // the amount of time spent runnable, cleared when running, only used when tracking
lockedm muintptr
sig uint32
writebuf []byte
sigcode0 uintptr
sigcode1 uintptr
sigpc uintptr
parentGoid uint64 // goid of goroutine that created this goroutine
gopc uintptr // pc of go statement that created this goroutine
ancestors *[]ancestorInfo // ancestor information goroutine(s) that created this goroutine (only used if debug.tracebackancestors)
startpc uintptr // pc of goroutine function
racectx uintptr
waiting *sudog // sudog structures this g is waiting on (that have a valid elem ptr); in lock order
cgoCtxt []uintptr // cgo traceback context
labels unsafe.Pointer // profiler labels
timer *timer // cached timer for time.Sleep
selectDone atomic.Uint32 // are we participating in a select and did someone win the race?
// goroutineProfiled indicates the status of this goroutine's stack for the
// current in-progress goroutine profile
goroutineProfiled goroutineProfileStateHolder
// Per-G tracer state.
trace gTraceState
// Per-G GC state
// gcAssistBytes is this G's GC assist credit in terms of
// bytes allocated. If this is positive, then the G has credit
// to allocate gcAssistBytes bytes without assisting. If this
// is negative, then the G must correct this by performing
// scan work. We track this in bytes to make it fast to update
// and check for debt in the malloc hot path. The assist ratio
// determines how this corresponds to scan work debt.
gcAssistBytes int64
}
// defined constants

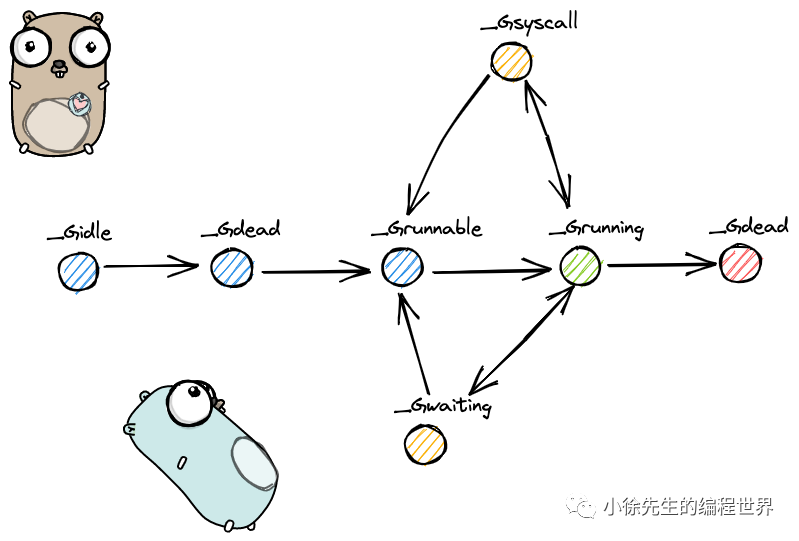

const (
// G status
//
// Beyond indicating the general state of a G, the G status
// acts like a lock on the goroutine's stack (and hence its
// ability to execute user code).
//
// If you add to this list, add to the list
// of "okay during garbage collection" status
// in mgcmark.go too.
//
// TODO(austin): The _Gscan bit could be much lighter-weight.
// For example, we could choose not to run _Gscanrunnable
// goroutines found in the run queue, rather than CAS-looping
// until they become _Grunnable. And transitions like
// _Gscanwaiting -> _Gscanrunnable are actually okay because
// they don't affect stack ownership.
// _Gidle means this goroutine was just allocated and has not
// yet been initialized.
_Gidle = iota // 0
// _Grunnable means this goroutine is on a run queue. It is
// not currently executing user code. The stack is not owned.
_Grunnable // 1
// _Grunning means this goroutine may execute user code. The
// stack is owned by this goroutine. It is not on a run queue.
// It is assigned an M and a P (g.m and g.m.p are valid).
_Grunning // 2
// _Gsyscall means this goroutine is executing a system call.
// It is not executing user code. The stack is owned by this
// goroutine. It is not on a run queue. It is assigned an M.
_Gsyscall // 3
// _Gwaiting means this goroutine is blocked in the runtime.
// It is not executing user code. It is not on a run queue,
// but should be recorded somewhere (e.g., a channel wait
// queue) so it can be ready()d when necessary. The stack is
// not owned *except* that a channel operation may read or
// write parts of the stack under the appropriate channel
// lock. Otherwise, it is not safe to access the stack after a
// goroutine enters _Gwaiting (e.g., it may get moved).
_Gwaiting // 4
// _Gmoribund_unused is currently unused, but hardcoded in gdb
// scripts.
_Gmoribund_unused // 5
// _Gdead means this goroutine is currently unused. It may be
// just exited, on a free list, or just being initialized. It
// is not executing user code. It may or may not have a stack
// allocated. The G and its stack (if any) are owned by the M
// that is exiting the G or that obtained the G from the free
// list.
_Gdead // 6
// _Genqueue_unused is currently unused.
_Genqueue_unused // 7
// _Gcopystack means this goroutine's stack is being moved. It
// is not executing user code and is not on a run queue. The
// stack is owned by the goroutine that put it in _Gcopystack.
_Gcopystack // 8
// _Gpreempted means this goroutine stopped itself for a
// suspendG preemption. It is like _Gwaiting, but nothing is
// yet responsible for ready()ing it. Some suspendG must CAS
// the status to _Gwaiting to take responsibility for
// ready()ing this G.
_Gpreempted // 9
// _Gscan combined with one of the above states other than
// _Grunning indicates that GC is scanning the stack. The
// goroutine is not executing user code and the stack is owned
// by the goroutine that set the _Gscan bit.
//
// _Gscanrunning is different: it is used to briefly block
// state transitions while GC signals the G to scan its own
// stack. This is otherwise like _Grunning.
//
// atomicstatus&~Gscan gives the state the goroutine will
// return to when the scan completes.
_Gscan = 0x1000
_Gscanrunnable = _Gscan + _Grunnable // 0x1001
_Gscanrunning = _Gscan + _Grunning // 0x1002
_Gscansyscall = _Gscan + _Gsyscall // 0x1003
_Gscanwaiting = _Gscan + _Gwaiting // 0x1004
_Gscanpreempted = _Gscan + _Gpreempted // 0x1009
)
M
type m struct {
g0 *g // goroutine with scheduling stack
morebuf gobuf // gobuf arg to morestack
divmod uint32 // div/mod denominator for arm - known to liblink
_ uint32 // align next field to 8 bytes
// Fields not known to debuggers.
procid uint64 // for debuggers, but offset not hard-coded
gsignal *g // signal-handling g
goSigStack gsignalStack // Go-allocated signal handling stack
sigmask sigset // storage for saved signal mask
tls [tlsSlots]uintptr // thread-local storage (for x86 extern register)
mstartfn func()
curg *g // current running goroutine
caughtsig guintptr // goroutine running during fatal signal
p puintptr // attached p for executing go code (nil if not executing go code)
nextp puintptr
oldp puintptr // the p that was attached before executing a syscall
id int64
mallocing int32
throwing throwType
preemptoff string // if != "", keep curg running on this m
locks int32
dying int32
profilehz int32
spinning bool // m is out of work and is actively looking for work
blocked bool // m is blocked on a note
newSigstack bool // minit on C thread called sigaltstack
printlock int8
incgo bool // m is executing a cgo call
isextra bool // m is an extra m
isExtraInC bool // m is an extra m that is not executing Go code
freeWait atomic.Uint32 // Whether it is safe to free g0 and delete m (one of freeMRef, freeMStack, freeMWait)
fastrand uint64
needextram bool
traceback uint8
ncgocall uint64 // number of cgo calls in total
ncgo int32 // number of cgo calls currently in progress
cgoCallersUse atomic.Uint32 // if non-zero, cgoCallers in use temporarily
cgoCallers *cgoCallers // cgo traceback if crashing in cgo call
park note
alllink *m // on allm
schedlink muintptr
lockedg guintptr
createstack [32]uintptr // stack that created this thread.
lockedExt uint32 // tracking for external LockOSThread
lockedInt uint32 // tracking for internal lockOSThread
nextwaitm muintptr // next m waiting for lock
// wait* are used to carry arguments from gopark into park_m, because
// there's no stack to put them on. That is their sole purpose.
waitunlockf func(*g, unsafe.Pointer) bool
waitlock unsafe.Pointer
waitTraceBlockReason traceBlockReason
waitTraceSkip int
syscalltick uint32
freelink *m // on sched.freem
trace mTraceState
// these are here because they are too large to be on the stack
// of low-level NOSPLIT functions.
libcall libcall
libcallpc uintptr // for cpu profiler
libcallsp uintptr
libcallg guintptr
syscall libcall // stores syscall parameters on windows
vdsoSP uintptr // SP for traceback while in VDSO call (0 if not in call)
vdsoPC uintptr // PC for traceback while in VDSO call
// preemptGen counts the number of completed preemption
// signals. This is used to detect when a preemption is
// requested, but fails.
preemptGen atomic.Uint32
// Whether this is a pending preemption signal on this M.
signalPending atomic.Uint32
dlogPerM
mOS
// Up to 10 locks held by this m, maintained by the lock ranking code.
locksHeldLen int
locksHeld [10]heldLockInfo
}
一类特殊的调度协程，不用于执行用户函数，负责执行 g 之间的切换调度. 与 m 的关系为 1:1；
P
type p struct {
id int32
status uint32 // one of pidle/prunning/...
link puintptr
schedtick uint32 // incremented on every scheduler call
syscalltick uint32 // incremented on every system call
sysmontick sysmontick // last tick observed by sysmon
m muintptr // back-link to associated m (nil if idle)
mcache *mcache
pcache pageCache
raceprocctx uintptr
deferpool []*_defer // pool of available defer structs (see panic.go)
deferpoolbuf [32]*_defer
// Cache of goroutine ids, amortizes accesses to runtime·sched.goidgen.
goidcache uint64
goidcacheend uint64
// Queue of runnable goroutines. Accessed without lock.
runqhead uint32
runqtail uint32
runq [256]guintptr
// runnext, if non-nil, is a runnable G that was ready'd by
// the current G and should be run next instead of what's in
// runq if there's time remaining in the running G's time
// slice. It will inherit the time left in the current time
// slice. If a set of goroutines is locked in a
// communicate-and-wait pattern, this schedules that set as a
// unit and eliminates the (potentially large) scheduling
// latency that otherwise arises from adding the ready'd
// goroutines to the end of the run queue.
//
// Note that while other P's may atomically CAS this to zero,
// only the owner P can CAS it to a valid G.
runnext guintptr
// Available G's (status == Gdead)
gFree struct {
gList
n int32
}
sudogcache []*sudog
sudogbuf [128]*sudog
// Cache of mspan objects from the heap.
mspancache struct {
// We need an explicit length here because this field is used
// in allocation codepaths where write barriers are not allowed,
// and eliminating the write barrier/keeping it eliminated from
// slice updates is tricky, more so than just managing the length
// ourselves.
len int
buf [128]*mspan
}
// Cache of a single pinner object to reduce allocations from repeated
// pinner creation.
pinnerCache *pinner
trace pTraceState
palloc persistentAlloc // per-P to avoid mutex
// The when field of the first entry on the timer heap.
// This is 0 if the timer heap is empty.
timer0When atomic.Int64
// The earliest known nextwhen field of a timer with
// timerModifiedEarlier status. Because the timer may have been
// modified again, there need not be any timer with this value.
// This is 0 if there are no timerModifiedEarlier timers.
timerModifiedEarliest atomic.Int64
// Per-P GC state
gcAssistTime int64 // Nanoseconds in assistAlloc
gcFractionalMarkTime int64 // Nanoseconds in fractional mark worker (atomic)
// limiterEvent tracks events for the GC CPU limiter.
limiterEvent limiterEvent
// gcMarkWorkerMode is the mode for the next mark worker to run in.
// That is, this is used to communicate with the worker goroutine
// selected for immediate execution by
// gcController.findRunnableGCWorker. When scheduling other goroutines,
// this field must be set to gcMarkWorkerNotWorker.
gcMarkWorkerMode gcMarkWorkerMode
// gcMarkWorkerStartTime is the nanotime() at which the most recent
// mark worker started.
gcMarkWorkerStartTime int64
// gcw is this P's GC work buffer cache. The work buffer is
// filled by write barriers, drained by mutator assists, and
// disposed on certain GC state transitions.
gcw gcWork
// wbBuf is this P's GC write barrier buffer.
//
// TODO: Consider caching this in the running G.
wbBuf wbBuf
runSafePointFn uint32 // if 1, run sched.safePointFn at next safe point
// statsSeq is a counter indicating whether this P is currently
// writing any stats. Its value is even when not, odd when it is.
statsSeq atomic.Uint32
// Lock for timers. We normally access the timers while running
// on this P, but the scheduler can also do it from a different P.
timersLock mutex
// Actions to take at some time. This is used to implement the
// standard library's time package.
// Must hold timersLock to access.
timers []*timer
// Number of timers in P's heap.
numTimers atomic.Uint32
// Number of timerDeleted timers in P's heap.
deletedTimers atomic.Uint32
// Race context used while executing timer functions.
timerRaceCtx uintptr
// maxStackScanDelta accumulates the amount of stack space held by
// live goroutines (i.e. those eligible for stack scanning).
// Flushed to gcController.maxStackScan once maxStackScanSlack
// or -maxStackScanSlack is reached.
maxStackScanDelta int64
// gc-time statistics about current goroutines
// Note that this differs from maxStackScan in that this
// accumulates the actual stack observed to be used at GC time (hi - sp),
// not an instantaneous measure of the total stack size that might need
// to be scanned (hi - lo).
scannedStackSize uint64 // stack size of goroutines scanned by this P
scannedStacks uint64 // number of goroutines scanned by this P
// preempt is set to indicate that this P should be enter the
// scheduler ASAP (regardless of what G is running on it).
preempt bool
// pageTraceBuf is a buffer for writing out page allocation/free/scavenge traces.
//
// Used only if GOEXPERIMENT=pagetrace.
pageTraceBuf pageTraceBuf
// Padding is no longer needed. False sharing is now not a worry because p is large enough
// that its size class is an integer multiple of the cache line size (for any of our architectures).
}
runq：本地 goroutine 队列，最大长度为 256.
Schedt
type schedt struct {
goidgen atomic.Uint64
lastpoll atomic.Int64 // time of last network poll, 0 if currently polling
pollUntil atomic.Int64 // time to which current poll is sleeping
lock mutex
// When increasing nmidle, nmidlelocked, nmsys, or nmfreed, be
// sure to call checkdead().
midle muintptr // idle m's waiting for work
nmidle int32 // number of idle m's waiting for work
nmidlelocked int32 // number of locked m's waiting for work
mnext int64 // number of m's that have been created and next M ID
maxmcount int32 // maximum number of m's allowed (or die)
nmsys int32 // number of system m's not counted for deadlock
nmfreed int64 // cumulative number of freed m's
ngsys atomic.Int32 // number of system goroutines
pidle puintptr // idle p's
npidle atomic.Int32
nmspinning atomic.Int32 // See "Worker thread parking/unparking" comment in proc.go.
needspinning atomic.Uint32 // See "Delicate dance" comment in proc.go. Boolean. Must hold sched.lock to set to 1.
// Global runnable queue.
runq gQueue
runqsize int32
// disable controls selective disabling of the scheduler.
//
// Use schedEnableUser to control this.
//
// disable is protected by sched.lock.
disable struct {
// user disables scheduling of user goroutines.
user bool
runnable gQueue // pending runnable Gs
n int32 // length of runnable
}
// Global cache of dead G's.
gFree struct {
lock mutex
stack gList // Gs with stacks
noStack gList // Gs without stacks
n int32
}
// Central cache of sudog structs.
sudoglock mutex
sudogcache *sudog
// Central pool of available defer structs.
deferlock mutex
deferpool *_defer
// freem is the list of m's waiting to be freed when their
// m.exited is set. Linked through m.freelink.
freem *m
gcwaiting atomic.Bool // gc is waiting to run
stopwait int32
stopnote note
sysmonwait atomic.Bool
sysmonnote note
// safepointFn should be called on each P at the next GC
// safepoint if p.runSafePointFn is set.
safePointFn func(*p)
safePointWait int32
safePointNote note
profilehz int32 // cpu profiling rate
procresizetime int64 // nanotime() of last change to gomaxprocs
totaltime int64 // ∫gomaxprocs dt up to procresizetime
// sysmonlock protects sysmon's actions on the runtime.
//
// Acquire and hold this mutex to block sysmon from interacting
// with the rest of the runtime.
sysmonlock mutex
// timeToRun is a distribution of scheduling latencies, defined
// as the sum of time a G spends in the _Grunnable state before
// it transitions to _Grunning.
timeToRun timeHistogram
// idleTime is the total CPU time Ps have "spent" idle.
//
// Reset on each GC cycle.
idleTime atomic.Int64
// totalMutexWaitTime is the sum of time goroutines have spent in _Gwaiting
// with a waitreason of the form waitReasonSync{RW,}Mutex{R,}Lock.
totalMutexWaitTime atomic.Int64
}
